SIGER CNC Cutting Tool Monitoring System V3.12.9 Version Released
SIGER CNC Cutting Tool Monitoring System V3.12.9 Version Iterative Released.
CNC Cutting Tool Monitoring System (TMS) V3.12.9 VersionIn order to improve the flexibility of machined piece count and the convenience of process configuration, the SIGER Data product team has specially upgraded this version. This upgrade adds a new service life counting method for machined piece count sources. In addition, a new process list setting function is added for non-NC configuration to help companies optimize production preparation processes.
CNC Cutting Tool Monitoring System (TMS) V3.12.9 Version

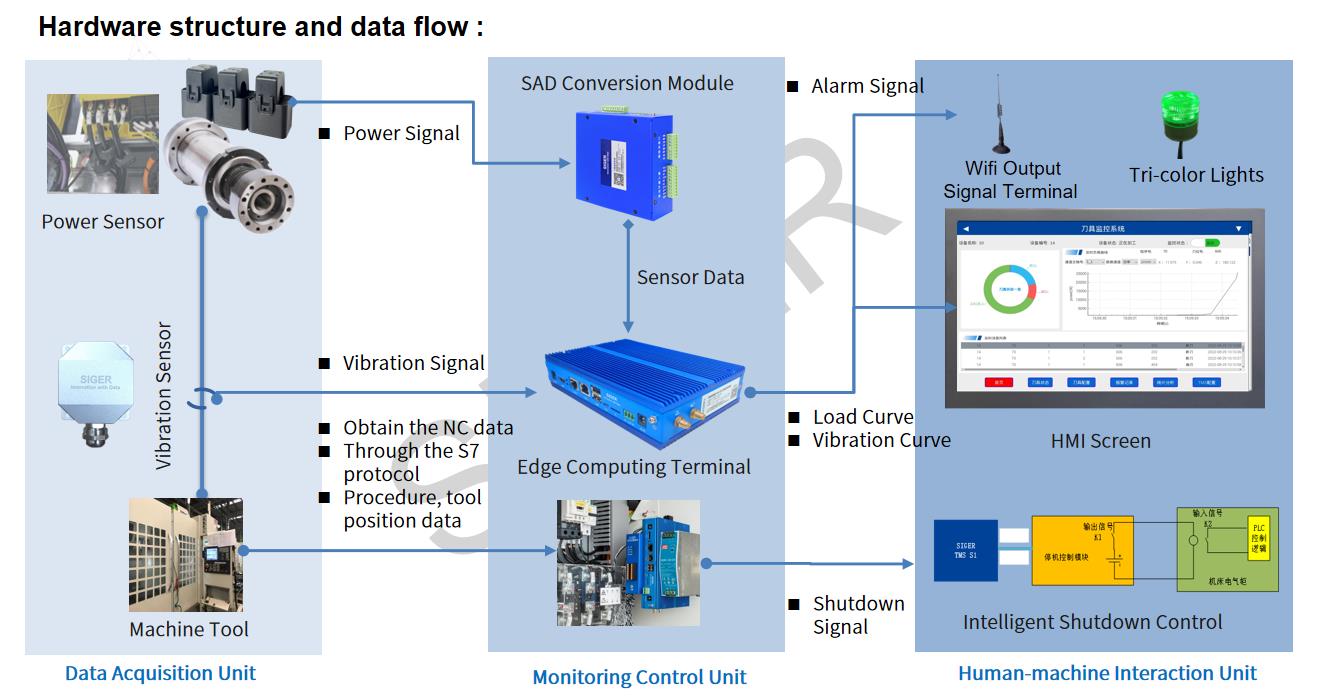

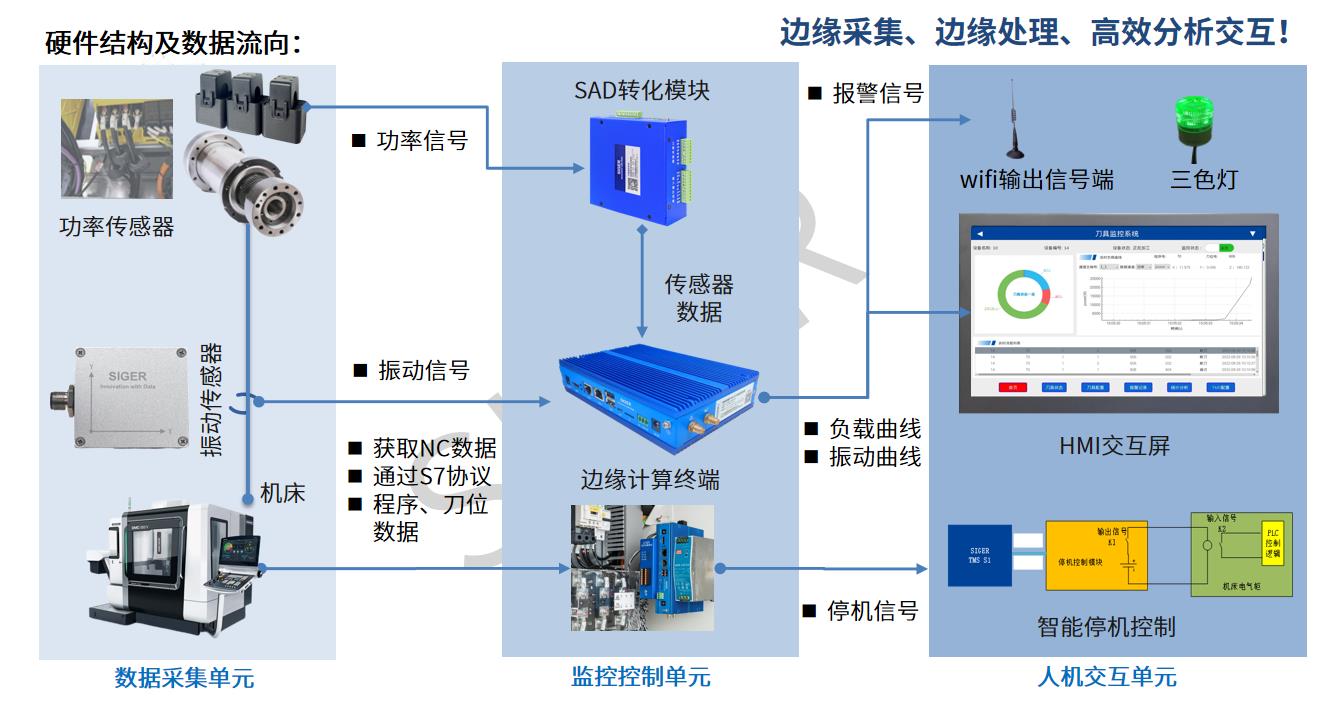

Monitoring schematic diagram
The Tool Monitoring System (TMS) is a cutting-edge solution designed to monitor and manage tool conditions during precision machining processes. By collecting data through edge sensors and analyzing it with intelligent algorithms, TMS enables real-time monitoring of tool status, intelligent diagnosis of tool breakage and chipping, and automatic shutdown control. This system truly achieves predictive tool life management, helping businesses handle tool changes with ease and avoid equipment damage or product quality losses caused by tool failures.
CNC Cutting Tool Monitoring System (TMS) V3.12.9 Version

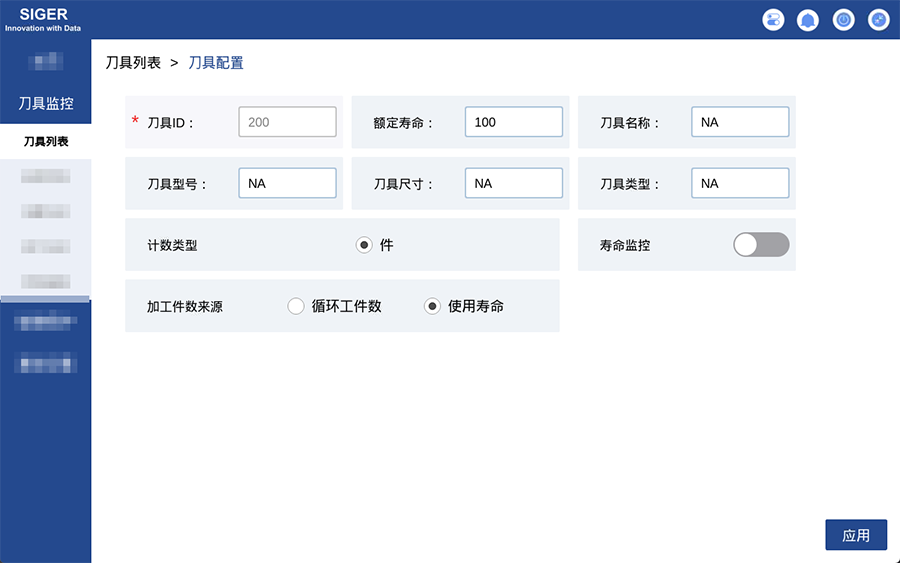

3.1 "Processing piece number source" function expansion
In order to improve the flexibility of processing piece number statistics, a new service life counting function is added. When changing tools, the number of processed pieces is increased by service life counting, which effectively avoids the situation where cc cannot be collected on site or cc is collected incorrectly.

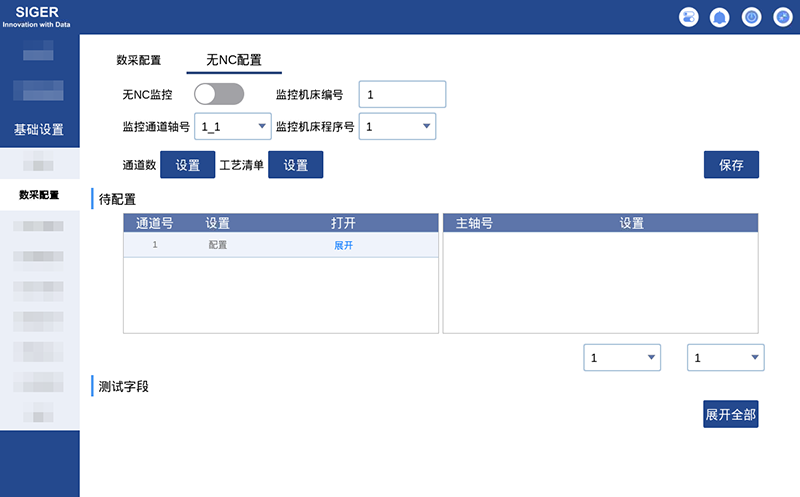

3.2 "Process list configuration" function added
For the non-NC configuration function, the process list configuration function has been upgraded. Users can configure intuitively, and the system automatically writes the background file, which greatly improves the efficiency and convenience of process list configuration, making production preparation faster.
SIGER Data’s Tool Monitoring System (TMS) is a tailor-made software solution for the precision machining industry, addressing critical challenges in tool usage. By collecting 30+ dimensions of data signals (e.g., spindle current/load) and leveraging self-learning algorithms combined with years of industry expertise, TMS accurately monitors tool wear, breakage, and chipping. It automatically triggers alarms and shutdowns to prevent batch scrapping caused by tool failures, effectively increasing tool life by over 30%!
Scope of adaptation of SIGER Tool Monitoring System:
-
■ Machine Types: Machining centers, gantry machines, lathes, turn-mill complexes, and more.
-
■ Processing Techniques: Mass repetitive machining, nested process machining, small-batch machining, non-NC scenarios, and more.
-
■ Machining Methods: Turning, milling, drilling, tapping, gear machining, surface machining, and other rough/finish machining scenarios (with a minimum machining allowance of 0.1mm).
